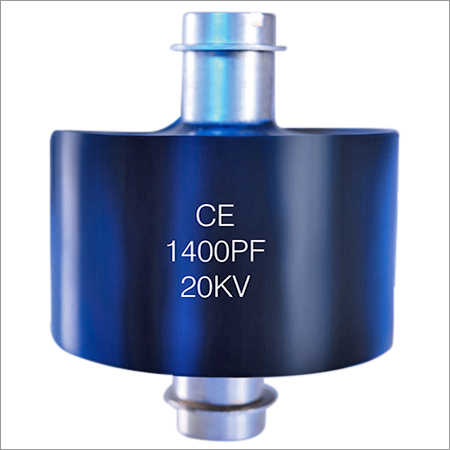

HIGH Voltage Ceramic Disc Capacitors

HIGH Voltage Ceramic Disc Capacitors

1.00 - 2.00 INR

Product Details:

  • Product Type Mica Capacitor
  • Material Steel
  • Size Medium
  • Color Blue
  • Click to View more
X

HIGH Voltage Ceramic Disc Capacitors Price And Quantity

  • 500 Piece
  • 1.00 - 2.00 INR

HIGH Voltage Ceramic Disc Capacitors Product Specifications

  • Blue
  • Medium
  • Steel
  • Mica Capacitor

HIGH Voltage Ceramic Disc Capacitors Trade Information

  • Cash in Advance (CID) Cheque Cash Advance (CA)
  • 1000000-1200000 Piece Per Month
  • 1 Week
  • Yes
  • Within a certain price range free samples are available
  • All India

Product Description

Capacitors above 40KV/DC/ Multi disc type will be fabricated against specific enquiries

Backed by experienced laborers, we as a prime manufacturer, supplier, trader are giving a gigantic array of Low Voltage Capacitors to the esteemed customers. Every one of these capacitors are made in consistence with overall principles at traders unit. Our items are stringently tried on very much characterized parameters to verify sturdiness and less upkeep. Our array of Low Voltage Capacitors is very much acclaimed for features, such as, simple establishment, longer serviceable life, solid array.

Specification

Type IType IIType III
Value Range1.0pf to 100pf100pf - 10000pf10kpf - 470kpf
Tolerance 0.5pf,   10 % 10%,  20%, -20+80%-20+80%
Dissipitation Factor0.015 max0.5%, 2.5% and 3.5%max.7.5 % max.
Voltage Rating16v to 63v and 500v to 15 KV16v to 63v and 500v to 40 KV16V to 63V and 500v to
Insulation Resistance> 10000 m> 10000 m> 100m ohm for 16 v > 1000m ohm for 25v, 50v, 63v
Voltage ProofAt 2.5 times of the working voltage for 16v to 63v At 2.0 times and 1.5 times of the working voltage from 500pf to 15kvAt 2 times of the working voltage up to 2kvdc. At 1.5 times of the working voltage from 3kvDC to 40kvDC.At 2.5 times of the working voltage



Available Range and Dimensions

Low Voltage Capacitors

Rated Volt

Temperature Characteristics/ Capacitance (PF)

Dimension (mm)

SL/Y5P/Y5V

Z5U/ Z5V

16V- 63V

1.0 - 68


6

3

5

0.5

82 - 100

2200 - 4700

7

3

5

0.5

150 - 1000


6

3

5

0.5


6800-100000

8

3

5

0.5


220000

11

3

5

0.5


3.3 - 12


8

3

5

0.5


22 - 120


8

3

5

0.5


150 - 1000


7

3

5

0.5



1500 - 4700

9

3

5

0.5



6800 - 10000

10

3

5

0.5



100000

19

3

7.5

0.6

Available Range And Dimensions

High Voltage Capacitors

Rated Volt

Temperature Characteristics Capacitance(PF)

Dimensions (mm)


SL/Y5P

Z5U / Z5V

D

T

F

d


1.0- 68


5

3

5

0.5

100 - 470


7

3

5

0.5

560 - 820

1000 - 4700

8

3

5

0.5


4700 - 10000

12

3

7.5

0.6


22000 -100000

23

3

10

0.6


10 - 68


8

3.5

5

0.6


100 - 470


8

3.5

5

0.6


560 - 1000

1000-3300

9

3.5

5

0.6



4700 - 5600

11

3.5

7.5

0.6



6800 - 10000

11

3.5

7.5

0.6



22000

17

3.5

10

0.6


10 - 68


8

3.5

5

0.6


100 - 470


8

3.5

7.5

0.6


560 - 1000


11

4

7.5

0.6



1000 - 10000

15

4.5

10

0.6

EHV LEAD Type Capacitors

6 KV DC

10 - 68


8

5

7.5

0.6

100 - 1000


8

5

7.5

0.6


2200 -4700

13

5

7.5

0.8


10000

20

7

10

0.8

8 KV DC

10 - 68


10

7

10

0.8

100 - 470


12

7

10

0.8


560 - 4700

16

7

10

0.8

10 KV DC

10 - 68


10

8

10

0.8

100 - 470


12

8

10

0.8


680 - 4700

16

8

10

0.8

15 KV DC


10000

26

8

15

0.8

10 - 50


10

9

10

0.8

100 - 470


10

9

10

0.8


1000 - 2200

20

12

15

0.8


EHV - STUD TYPE

D (max)

H (max)

L (max)

Tapped Hole

20 KV DC

100 - 470


30

22

24

M4


1000 - 47000

30

22

24

M4

30 KV DC

100 - 500


40

25

27

M4


1000 - 2200

40

25

27

M4




40

30

32

M4




60

30

32

M4
